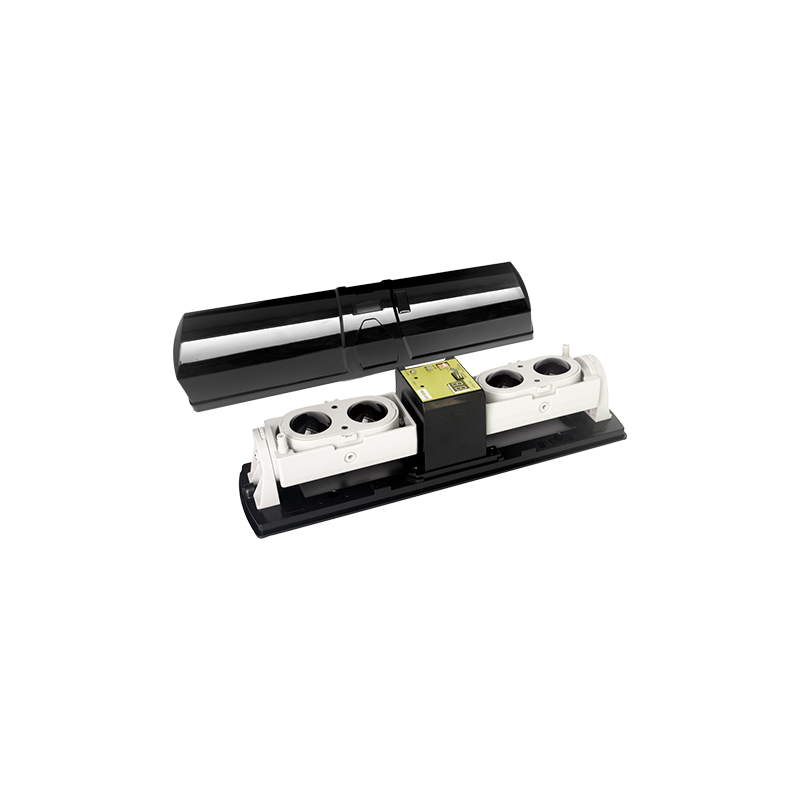

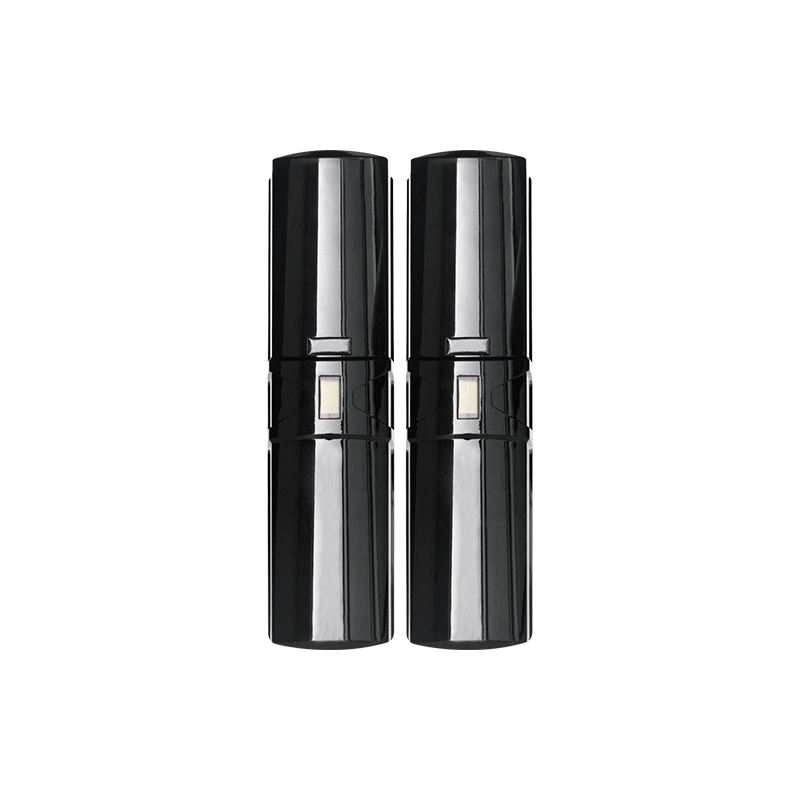

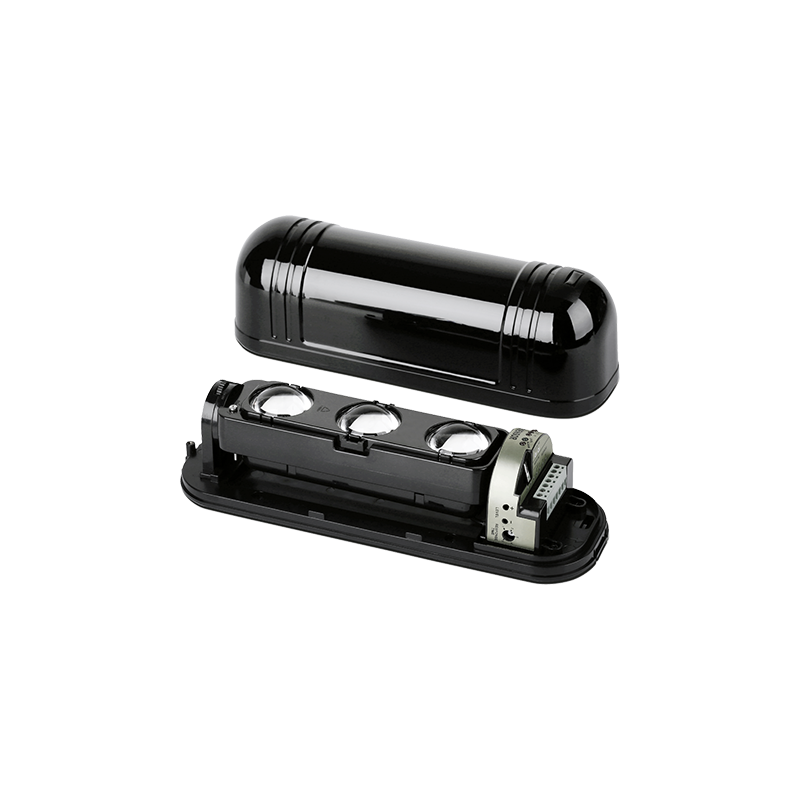

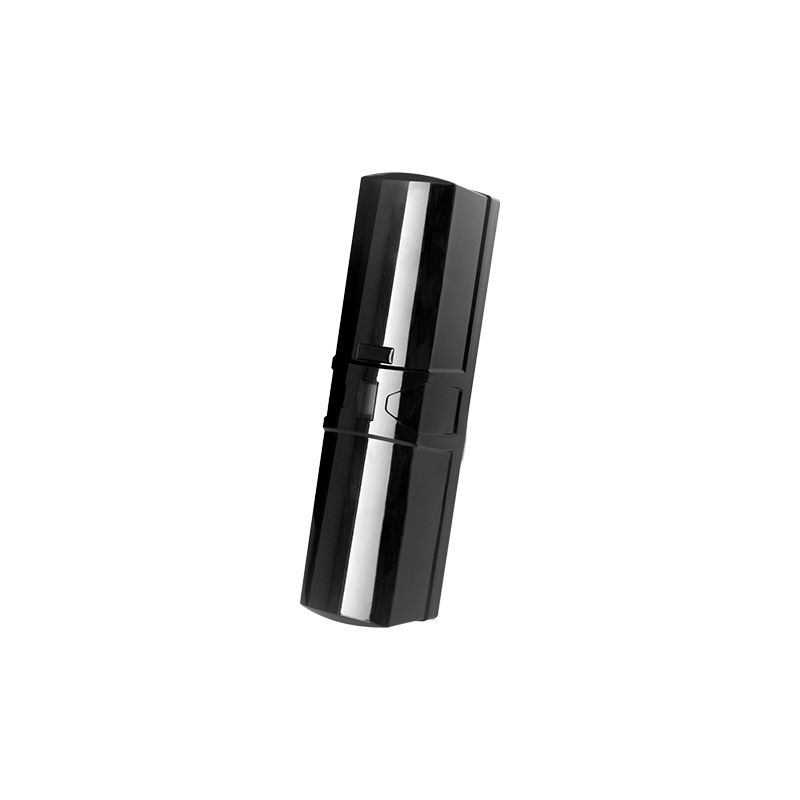

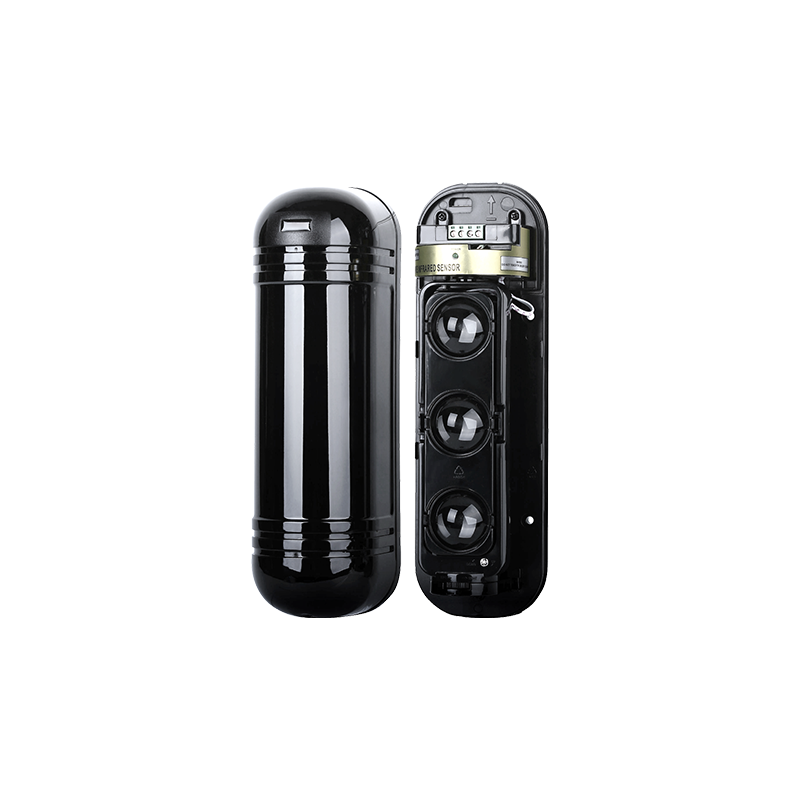

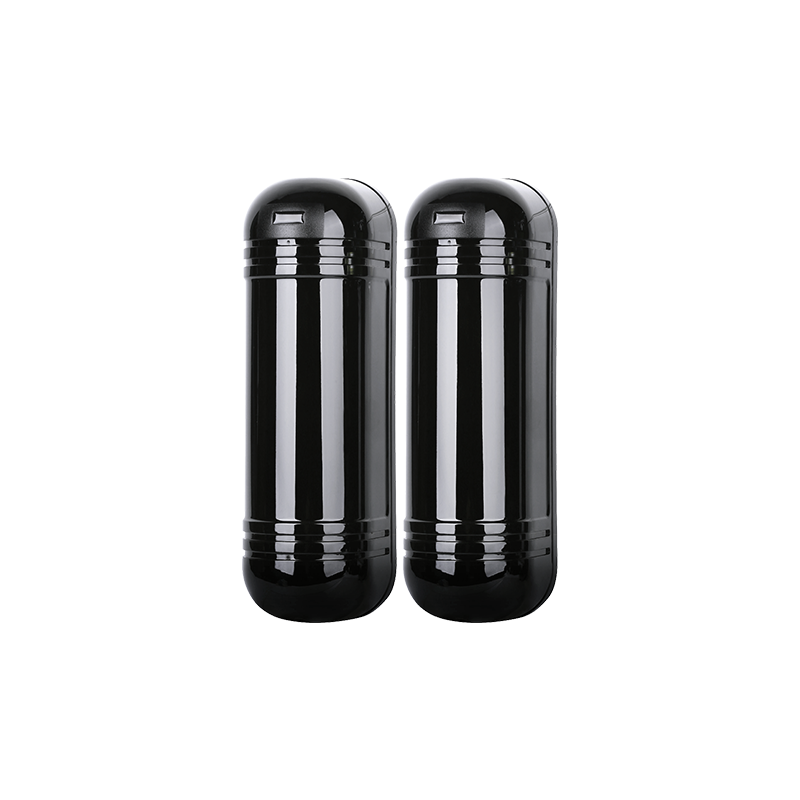

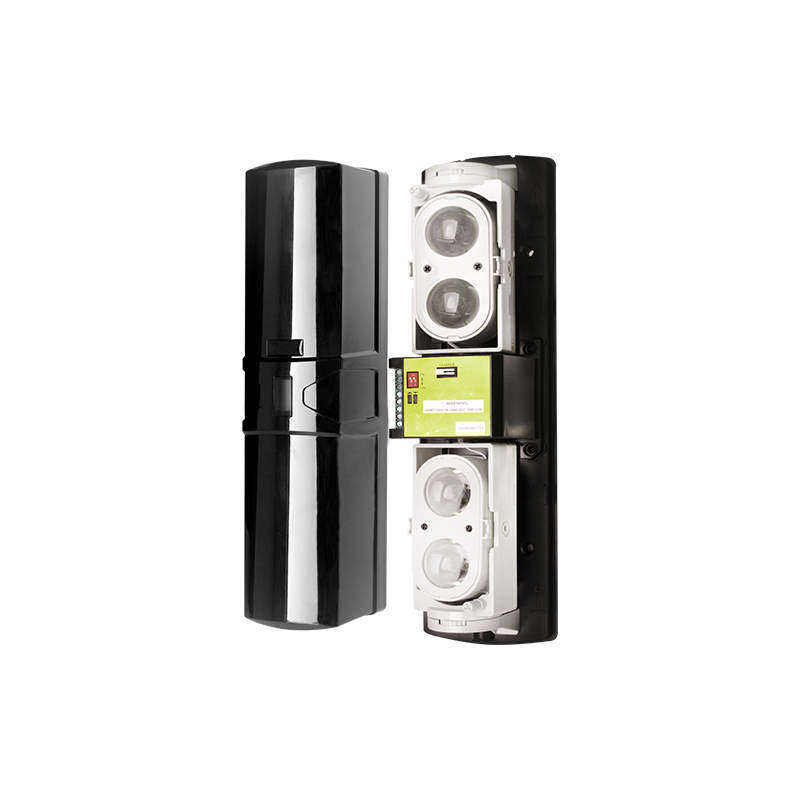

Infrared Beam Detector

Product Specification:

1. Product size: 370*96*101mm

2. Detecting Distance（outdoor): 50m-300m(optional)

3. Detecting Distance（indoor): 150m-900m(optional)

4. Beam Quantity: 4

5. Detection Mode: quad beam simultaneous block

6. Light Source: Infrared digital pulse

7. Response Speed：50~700ms

8. Alarm Output：NC/NO (DC 30V/500mA)

9. Voltage power consumption：DC12~24V AC11~18V P≥4W

10. Current Consumption：<100 mA(max）

11. Anti-tamper Switch：NC/NO(DC 30V/500mA)

12. Optical Axis Adjustment：Vertical 20°(±10°)，Horizontal 180°(±90°)

13. Waterproof Rank： IP65

14. Operating Temperature：-30℃~55℃

15. Relative Humidity：≤95%(non-condensing)
